Razorlux Aluminum Alloy Reflector LED 500W Sports Lighting

    Buy cheap Razorlux Aluminum Alloy Reflector LED 500W Sports Lighting from wholesalers

    Buy cheap Razorlux Aluminum Alloy Reflector LED 500W Sports Lighting from wholesalers
    • Buy cheap Razorlux Aluminum Alloy Reflector LED 500W Sports Lighting from wholesalers

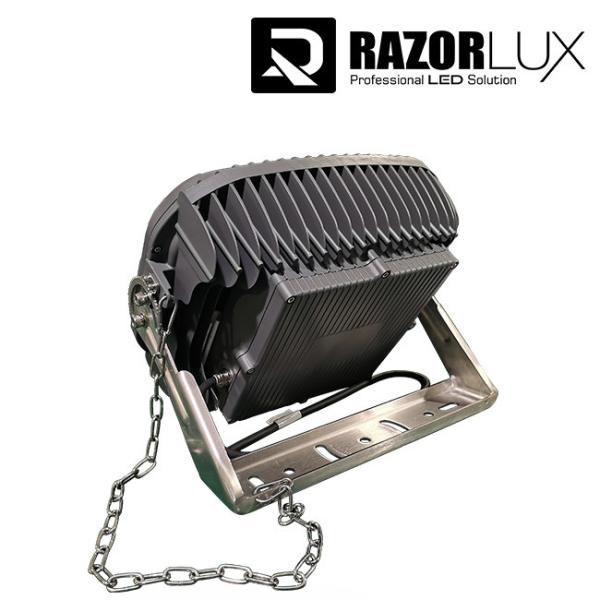

    Razorlux Aluminum Alloy Reflector LED 500W Sports Lighting

    Ask Lasest Price
    Brand Name : Razorlux
    Model Number : RGL2-500A
    Certification : ce, LVD, RoHS, Saa, UL
    Price : $819.00/Pieces
    • Product Details
    • Company Profile

    Razorlux Aluminum Alloy Reflector LED 500W Sports Lighting

    Razorlux Aluminum Alloy Reflector LED 500W Sports Lighting

    Main Features
    1. 80% lumen maintenance over 50,000hours
    2. Wide Power range: 500W
    3. 110-480Vac input voltage without additional adapter
    4. Patent Built-in Serge Protection.
    5. top chips high efficacy 130lm/w±7% with meanwell driver
    6. IP67 waterproof, IK10 impact proof
    7. Neutral Salt Spray Resistance
    8. Anti-Corression power coating surface treatment
    9. Stainless steel brackets material.(Upgradable to SS316)
    10. 0-10VDC, DALI and wireless control available
    11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
    12. High uniformity & color rendering index




    Parameter of Razorlux Reflector LED 500W:

    ModelRGL2-500A
    Beam Angle40° 60° 120° 140°

    Stable Flux

    (5700K after 1 hour)

    65000lm
    Dimension (mm)468*388*367
    LEDs450W
    PowerDriver50W
    ConsumptionTotal500W
    Replace HID Lamp1000~1200W
    Net Weight17.5kg with stainless steel floodlight bracket
    Color Temperature2700-6500K
    Color Rendering≥Ra75 (≥Ra80, ≥Ra90 available on request)
    Working Life≥50000Hrs
    Housing MaterialAluminum & Powder coating
    Power SupplyMeanwell
    IP Class

    IP 65 (Upgradeable to IP 67)

    IK Class

    IK 10

    Insulation ClassClass I
    Working Temperature-40C ~ 60C / -40F ~ 140F
    Working Humidity10% ~ 95%
    AC Input110-480Vac input voltage without additional adapter
    DC Input100 ~ 400Vdc, 500Vdc ~ 800Vdc
    THD<10%
    Power Factor≥0.98
    WarrantyLED Module5 year
    Driver5 year
    Housing10 year

    Lighting Distribution of Razorlux Reflector LED 500W:

    For Different application requirement, Razorlux Genius Series have different types of beam angles options.

    at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.


    1. UL Certificate No.: 20141114-E471702

    2. TUV-EMC Certificate No. :E8A 16 11 76176 008

    3. TUV-LVD Certificate No.: N8A 16 10 76176 005

    4. LM-79 Testing Report No. :20141114-E471702

    5. SAA Certificate No.: SAA132163

    6. RoHs Certificate No.: LCGCll110284 (Issued on JuI.10, 2012)

    7. For DLC, please check in website: www.designlights.org/search/#/results, search by keyword "Razorlux" for more details.


    Application Projects

    Application of Razorlux Reflector LED 500W


    Model

    G.W

    Genius II Compact 500W A Series

    17.5KGS


    Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

    the delivery of products, each item will be checked and tested for several times.


    For every piece of Razorlux 500 Watt LED Flood Light are tested in different procedures.

    No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

    No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

    No. 3 & 4: Dark Room for testing IES files and other Photometric datas.

    For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

    to make sure of their long term and stable performances within lifetime.



    1. Before and after sales in time service 7/24

    2. Professional Lighting solution, DIALux simulation available

    3. Payment terms: Paypal, TT, LC, DP etc

    4. Shipment terms: FOB, CIF, CFR

    5. Lead time: 5-7 working days

    6. NO MOQ required, sample testing welcome

    Trade Shows

    Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018

    Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018

    2015 LED Expo in Den Bosch, Netherland

    2016 Strategies in Light in Las Vegas, U.S.A

    2016 IIDEX in Toronto, Canada


    Advantages of 500 Watt LED Sports Lighting

    • Top grade CREE/Samsung led chip
    • Meanwell Driver
    • Marine grade powder coating housing finish, and 316 stainless steel bracket
    • 15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
    • Clear tempered glass lens, and reflector make the classical shape lighting
    • IP67 and IK10 grade
    • Protection grid, visor available for optional
    • Anti-glare frosted lens available
