    Street 0.98 Led Explosion Proof Light

    Ask Lasest Price
    Brand Name : Razorlux
    Certification : ce, C-tick, PSE, RoHS, Saa
    Supply Ability : 3000 Piece/Pieces per Month
    Price : $10.00 - $500.00/Pieces
    Model Number : R EP-J-200
    • Product Details
    • Company Profile

    Street 0.98 Led Explosion Proof Light

    IP65 Atex Certification 200w most powerful led explosion proof street light for outdoor lighting
    FEATURES:
    1. High Efficacy low decay 700MA LED chip
    2. High heat transmit die cast housing ADC12 aluminum, patent design, IP68
    3. Shock and vibration resistant tempered glass, super clear 95% light transmit rate
    4. Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
    5. Original Bridgelux LED source,high luminous efficacy and long lifespan
    6. MEANWELL HLG series driver, the highest level of MEANWELL driver
    7. Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
    8. 2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
    9. Working temperature: -30ºC to 50ºC.
    Application
    1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
    2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
    3. Class I Division 2 Group A, B, C, D
    A hazardous location is defined as a place where concentrations of flammable gases, vapors or dust occur.
    Electrical equipment that must be installed in such locations is specially designed and tested to ensure it does not initiate an explosion,
    due to arcing contacts or high surface temperature of the equipment.
    Explosion proof lighting that can be used in a range of settings is not necessarily the same as hazardous.
    For instance, explosion proof can be used in commercial kitchens to avoid accidents caused by shattered light fixtures.
    ITEM NO.RLEP-J40RLEP-J100RLEP-J200
    TOTAL POWER30w100w185w
    Replace HPS150w300-350w700-1000w
    Dimension200*200*270mm300*300*175mm400*400*185
    Weight4KG7.5KG12KG
    Reflector/ wide angle120wide anglewide angle
    Nominal lumens3480lm11600lm20880lm
    Driver Current350mA
    # OF LEDS2484156
    System Efficacy116 LM/W
    Light Color option5700/4000/2700K
    MateriaDie Cast Aluminum
    Wide AC input90-305 VAC
    Power Factor0.98
    Total Harmonic Distortion< 10%
    Surge protectionIEC/EN 61000-4-5
    Operation temp-30 ºC to +50 ºC
    IP class68
    Rated Life100,000+ hrs
    Warranty5 years
    CertificateROHS CE DLC ATEX SAA PSE C-TICK

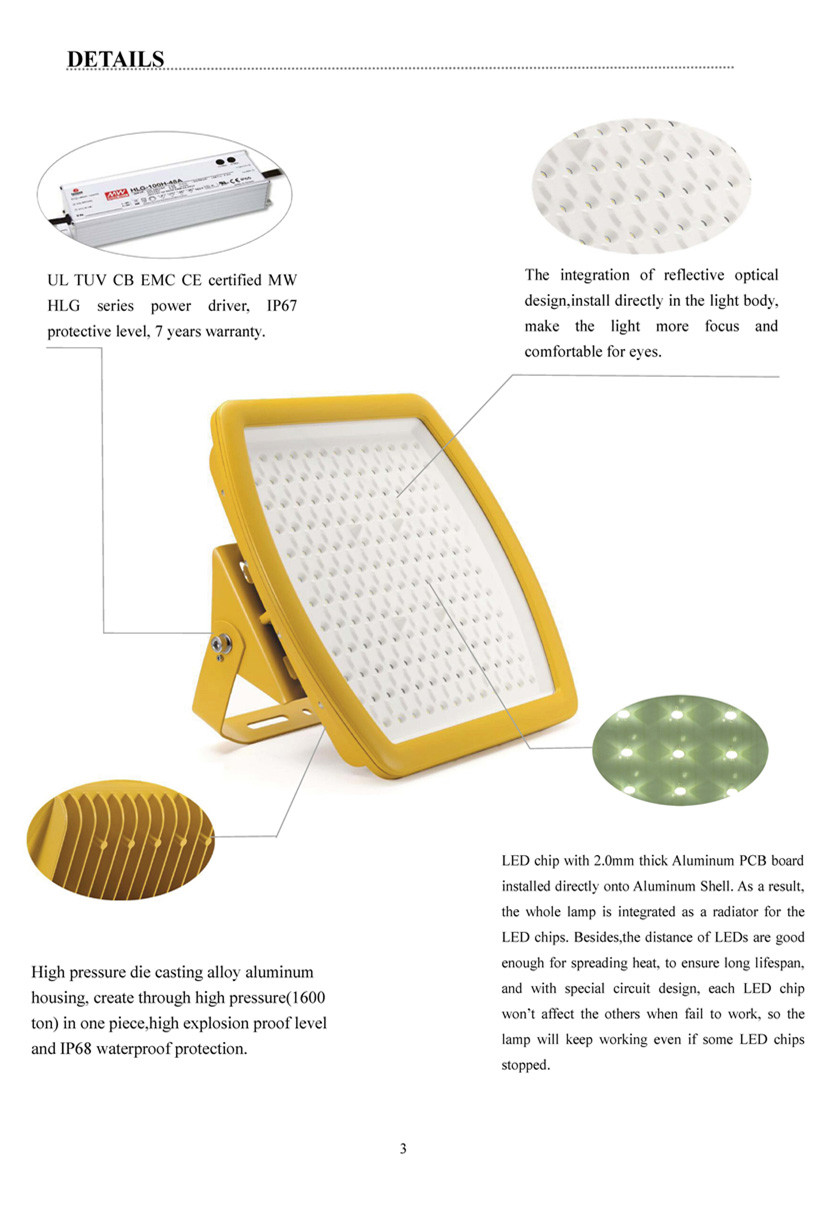

    1. UL TUV CB EMC CE certified MW
    HLG series power driver, IP67 protective level, 7 years warranty.

    2. The integration of reflective optical design,install directly in the light body,
    make the light more focus and comfortable for eyes.

    3. High pressure die casting alloy aluminum housing, create through high pressure(1600
    ton) in one piece,high explosion proof level and IP68 waterproof protection.

    4. LED chip with 2.0mm thick Aluminum PCB board installed directly onto Aluminum Shell. As a result,
    the whole lamp is integrated as a radiator for the LED chips. Besides,the distance of LEDS are good
    enough for spreading heat, to ensure long lifespan, and with special circuit design, each LED chip
    won’t affect the others when fail to work, so the lamp will keep working even if some LED chips stopped.
