LED Light Source and Cool White Color Temperature 1000W Stadium
Lights Fixtures
Football teams have a unique challenge in providing lighting across
their pitches and training areas during the darker, winter months.
With funds often tight, it’s not always possible to invest in
professional level, permanentfloodlights.
Football
pitch floodlightsfor sale is not just installing the flood lamps onto the ceiling.
Before that, we need to have a very clear photometric design to
have the best lighting outcome. There are many types of projects
such as new light installation, LED replacement, color changing
lighting design and etc.
Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 1000W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

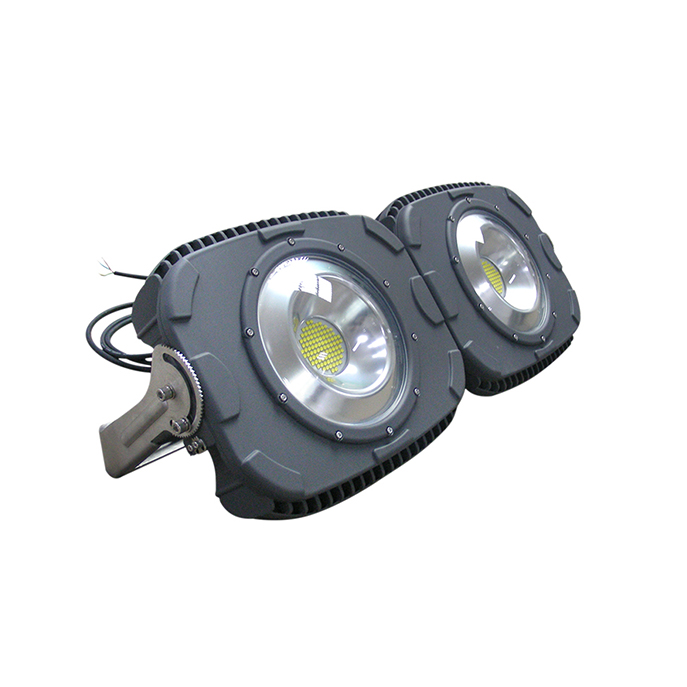

Photos of Stadium Lights Fixtures:
Parameter of Razorlux Stadium Lights Fixtures:
Model
RGL2-1000A
Beam Angle
40° 60° 120° 140°
Stable Flux
(5700K after 1 hour)
130000lm
Dimension (mm)
474*388*982
LEDs
900W
Power
Driver
100W
Consumption
Total
1000W
Replace HID Lamp
2200~2500W
Net Weight
30kg (66lbs)
Color Temperature
2700-6500K
Color Rendering
≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life
≥50000Hrs
Housing Material
Aluminum & Powder coating
Power Supply
Meanwell
IP Class
IP 65 (Upgradeable to IP 67)
IK Class
IK 10
Insulation Class
Class I
Working Temperature
-40C ~ 60C / -40F ~ 140F
Working Humidity
10% ~ 95%
AC Input
110-480Vac input voltage without additional adapter
DC Input
100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD
<10%
Power Factor
≥0.98
Warranty
LED Module
5 years
Driver
5 years
Housing
10 years
Lighting Distribution of Razorlux Stadium Lights Fixtures:
For Different application requirement, Razorlux Genius Series have
different types of beam angles options.
at the moment we have40° 60° 120° 140°beam angle available.
15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
Clear tempered glass lens, and reflector make the classical shape
lighting
IP67 and IK10 grade
Protection grid, visor available for optional
Anti-glare frosted lens available
FAQ:
1. Are you a factory or trading company:
We are a factory located in Xi'an China, established in 2006.
2. What is your product range?
Our wide product range includes floodlight, street light, pendant
light, and power from 60W to 1200W.
3. How many days of production will the order take?
Normally 7-15 days, depending on the order quanity.
4. How do you ship goods abroad?
For sample, trial order, or small quantities we will suggest
shipping by air, for large quantity and bulk order we recommend
shipping by sea.
5. Does your product support smart control like sensor, dimming,
DALI, etc.
They support all of these features, please tell our sales during
your negotiation when you need such features.
6. How do you deal with failed lights?
During the warranty period, we will send customer free part or lamp
after checking the evidence. After warranty, we only charge the
component fees, no extra charge for our customer.
