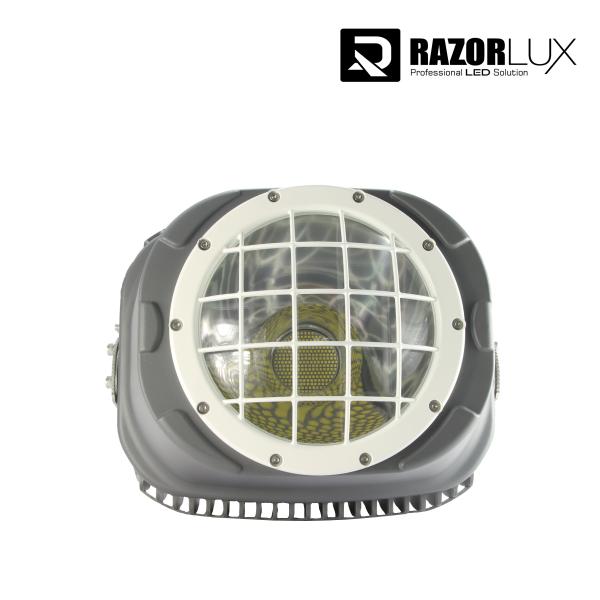

15/20/30 beam Angle 200w led flood light 25000 lumen for boat
lights
Features:
- We use Top grade Osram / Cree /lumileds chip
- Meanwell driver
- Stainless steel bracket
- Powder coating for lamp body,corrosion resistance is better
- Patented built-in driver and fin type radiator.(Very good heat
dissipation)
- Built-in surge protection, Built-in thermal protection.
- Uni-body and Multi-function designed. (Suitable for all projects)
- Universal input 80~305Vac without additional adapter.
- 110-130 lm/w lamp efficiency.
- All our product are IP65/67 waterproof.
- All our product has 3/5 years warranty.
| 1. 80% lumen maintenance over 50,000hours |
| 2. Wide Power range: 200W |
| 3. 110-480Vac input voltage without additional adapter |
| 4. Patent Built-in Serge Protection. |
| 5. TOP chips high efficacy 120lm/w with meanwell driver |
| 6. IP67 waterproof, IK10 impact proof |
| 7. Neutral Salt Spray Resistance |
| 8. Anti-Corression power coating surface treatment |
| 9. Stainless steel brackets material.(Upgradable to SS316) |
| 10. 0-10VDC, DALI and wireless control available |
| 11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed |
| 12. High uniformity & color rendering index |
Marine searchlights, floodlights and spotlights have become more
affordable and much more efficient with the recent vast
improvements in LED technology, and we offer hundreds of items in
this category to satisfy your boat lighting requirements. Select
from incandescent, halogen or LED bulbs to provide the exact type
and intensity of light you need. We have LED marine flood lights,
rechargeable marine spotlights, and both remote control marine
spotlights and one of the best
marine handheld spotlights on the market.
| Model | RGL2-200P |
| Beam Angle | 15° 20° 30° |
Stable Flux (5700K after 1 hour) | 24000lm |
| Dimension (mm) | 466*388*487 |
| LEDs | 180W |
| Power | Driver | 20W |
| Consumption | Total | 200W |
| Replace HID Lamp | 400~600W |
| Net Weight | 19kg with stainless steel floodlight bracket |
| Color Temperature | 2700-6500K |
| Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) |
| Working Life | ≥50000Hrs |
| Housing Material | Aluminum & Powder coating |
| Power Supply | Meanwell |
| IP Class | IP 65 (Upgradeable to IP 67) |
| IK Class | IK 10 |
| Insulation Class | Class I |
| Working Temperature | -40C ~ 60C / -40F ~ 140F |
| Working Humidity | 10% ~ 95% |
| AC Input | 110-480Vac input voltage without additional adapter |
| DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc |
| THD | <10% |
| Power Factor | ≥0.98 |
| Warranty | LED Module | 5 year |
| Driver | 5 year |
| Housing | 10 year |
Advantage:
1. Service:We also provide our
client with lighting layout design and brightness calculation of
projects ,Razorlux would be your first choice of professional Led
lighting supplies.
2. Universival input
without additional.
3. Meanwell
driver,heat resistant for our power supply. It can working well
on temperature at 55°C
4. Multi-function designed, flexible,you always find a combination
fitting your projects perfectly.
5. Unique and elegant appearance,and patented heat dissipation
technology.
6.Have cooperated
with a lot of importers in EU markets more than 10
years.
7. Experienced in doing business with big customers.
9. Own designing team for new products development ,our products
were developed by ourselves and we hold 125 patents.
10. We have passed the testing and got the
ISO9001,TUV,LVD,SAA,CE,UL,DLC,CUL,Rohs certificates.
11. Different lens,reflectors ,and accessories,they can be varied
beam angle mounting bracket,control system and etc.
Application:
Commercial Vessels. Suitable for use on tugboats, towboats,
passenger ferries, fishing vessels, trawlers and barges.
Marine applications: Walkways, doorways and stairwells on the deck
and interior of vessels, as well as perimeter deck lighting
Mining applications: Perimeter and walkway lighting on large mining
equipment like shovels and draglines, machine, electrical and
engine rooms, as well as any dusty or dirty location.
Industrial: Parking garages, carwashes, transportation centers,
subways, swimming pools, locker rooms, automotive repair facilities
as well as food processing facilities, including walk-in freezers,
and industrial kitchens
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
