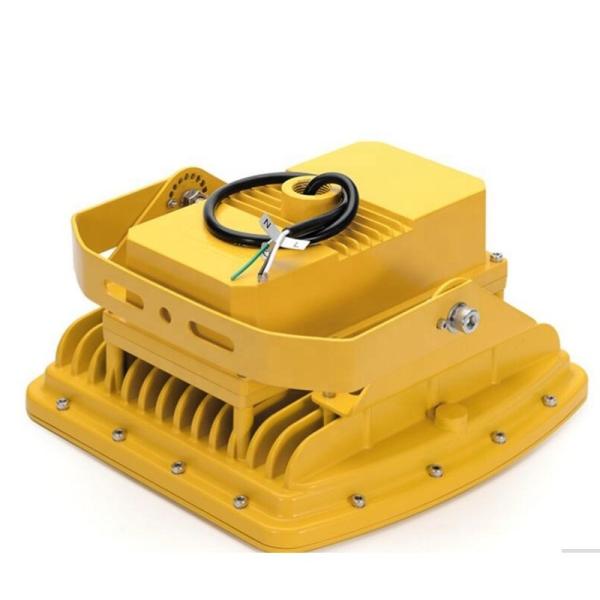

    Waterpoof IP67 Reflector Flood Light 100w Outdoor Ex Proof Led Flood Light

    Ask Lasest Price
    Brand Name : Razorlux
    Certification : ce, C-tick, PSE, RoHS, Saa
    Supply Ability : 3000 Piece/Pieces per Month
    Price : $200.00 - $255.00/Pieces
    Model Number : R EP-J-100
    • Product Details
    • Company Profile

    Waterpoof IP67 Reflector Flood Light 100w Outdoor Ex Proof Led Flood Light


    Ex-Proof Led Light 100w Waterpoof Led Outdoor Reflector Floodlights

    FEATURES:

    1.High Efficacy low decay 700MA LED chip
    2.High heat transmit die cast housing ADC12 aluminum, patent design, IP68
    3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate
    4.Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
    5.Original Bridgelux LED source,high luminous efficacy and long lifespan
    6.MEANWELL HLG series driver, the highest level of MEANWELL driver
    7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
    8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
    9.Working temperature: -30ºC to 50ºC.
    Application
    1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
    2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
    3. Class I Division 2 Group A, B, C, D
    INSTALLATION
    Easy installation – plug and play
    Wall Mount bracket/Ceiling Mount Bracket

    QUALIFICATION
    ATEX: Zone 1&Zone 2
    UL844 : Class 1, Division 2
    IECEx
    DLC
    SAA&CTICK
    CE&ROHS
    LCP
    ITEM NO.
    RLEP-J40
    RLEP-J100
    RLEP-J200
    TOTAL POWER
    30w
    100w
    185w
    Replace HPS
    150w
    300-350w
    700-1000w
    Dimension
    200*200*270mm
    300*300*175mm
    400*400*185
    Weight
    4KG
    7.5KG
    12KG
    Reflector/ wide angle
    120
    wide angle
    wide angle
    Nominal lumens
    3480lm
    11600lm
    20880lm
    Driver Current
    350mA
    # OF LEDS
    24
    84
    156
    System Efficacy
    116 LM/W
    Light Color option
    5700/4000/2700K
    Materia
    Die Cast Aluminum
    Wide AC input
    90-305 VAC
    Power Factor
    0.98
    Total Harmonic Distortion
    < 10%
    Surge protection
    IEC/EN 61000-4-5
    Operation temp
    -30 ºC to +50 ºC
    IP class
    68
    Rated Life
    100,000+ hrs
    Warranty
    5 years
    Certificate
    ROHS CE DLC ATEX SAA PSE C-TICK
