Description of Sports Light Fixtures:

Whether you need to replace existing HID sports lighting with sports light fixtures or you’re lighting a brand new field, we have the fixtures, poles, and brackets to make your field properly lit for night time play.

Our LED sports lights use only premium components including CREE LED chips for the longest LED life span available! We offer 3 levels of fixtures based off IES criteria for playing fields. For higher end Class 1 fields like professional, or college stadiums the Helios sports lighter is the ideal fixture.

For Class 2 to 4 fields the Heritage sports lighter provides the look of a traditional housing design with the power and efficiency of LED. For everything less we have our Heritage Shoebox area light which is perfect for community fields or elementary schools.

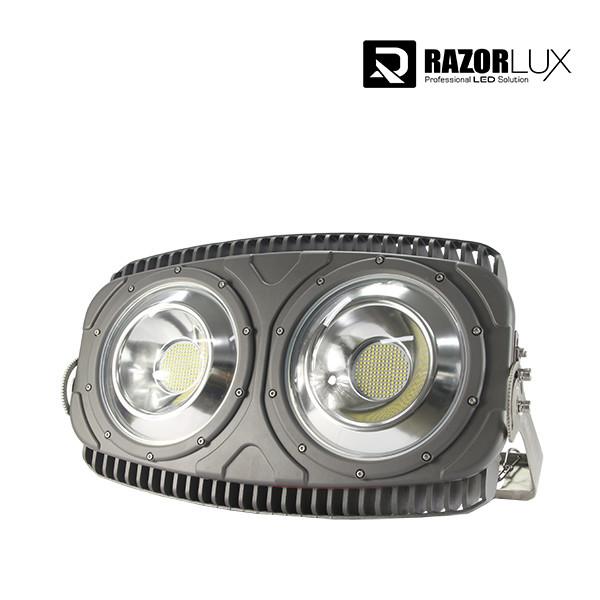

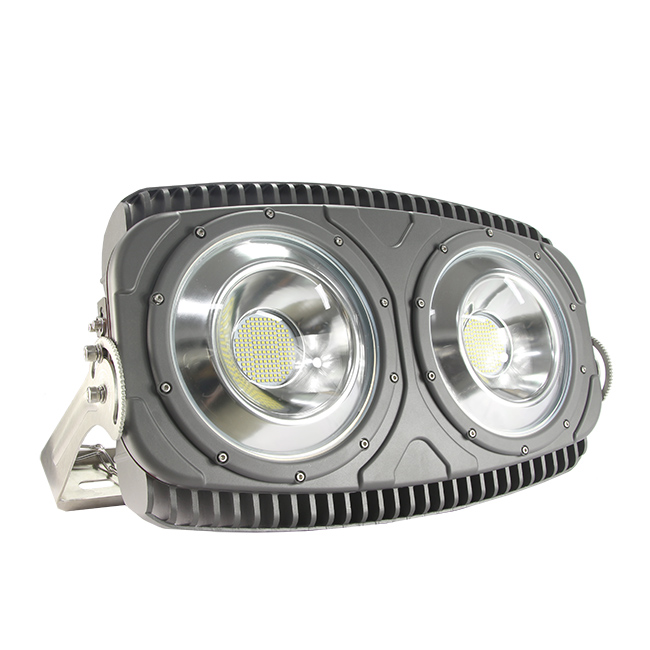

5 years warranty ip65 multiple power 600w led high mast flood lights for high pole

Model			600P-L15	600P-L20	600A-L60	600A-L120	600A-L140
Beam Angle			15°	20°	60°	120°	140°x60°
Stable Flux (5700K after 1 hour)			66,000 lm	66,000 lm	73,000 lm	76,000 lm	68,000 lm
Dimension (mm)			671x405x374mm 671x405x322mm 671x405x204mm
Power Consumption	LEDs	540W
		Driver	60W
		Total	600W
Replace HID Lamp			1000 ~ 2000W
Net Weight			29kg (64lbs) with stainless steel floodlight bracket
Color Temperature			5700K (2700 ~ 6500K available on request)
Color Rendering			≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life			≥50000Hrs
Housing Material			Aluminum
Coating			Zinc Rich Paint
IP Class			IP 65 (Upgradeable to IP 67)
Insulation Class			Class I
Working Temperature			-40 ~ 60C / -40 ~ 140F
Working Humidity			10% ~ 95%
AC Input			80 ~ 360Vac, 400 ~ 600Vac
DC Input			100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD			<10%
Power Factor			≥0.98
Warranty	LED Module	5 year
		Driver	5 year
		Housing	10 year

Features & Specifications of high lumen led outdoor flood light

• Patented Multi-function design, suitable for all working environments.
• Rated Power: 400W-1200W
• Input Voltage: AC90-305, DC127-431
• Color Temperature: 2700K-6500K
• Lamp Efficiency: 130LM/W
• Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
• CRI: Ra>75
• IP Grade: IP65/IP67
• Bracket: Stainless Steel
• Net Weight: 15KG
• Warranty: 5 Years

Advantages of high lumen led outdoor floodlight

• Top grade CREE/Samsung led chip
• Meanwell Driver
• Marine grade powder coating housing finish, and 316 stainless steel bracket
• 15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
• Clear tempered glass lens, and reflector make the classical shape lighting
• IP67 and IK10 grade
• Protection grid, visor available for optional
• Anti-glare frosted lens available
• Safety chains
• UL, DLC, CE, ROHS, EAC, SAA, C-Tick certified.

Who We Are?

Xi'an Razorlux Optoelectronic Technology Co., Ltd is working on high quality and professional LED lighting products, and more than manufacture, we are also providing our clients with lighting layout design and brightness calculation of projects.

Razorlux would always be your first choice of professional LED lighting supplier.

Razorlux Technology Inc is a professional LED lighting company in America and her sister company Razorlux Optoelectronic Technology Co., Ltd. is in China, they are subsidiary companies of Hong Kong Grandall International Limited, Razorlux is rebranded from Zhihai and the brand is registered in USA, China, Hong Kong and Europe.

Razorlux (Zhihai) was established in 1998, before 2006 we were one of the most advanced manufacturers of the power supply and we worked with many important companies in Asia, including China Guodian, China Mobile, and Comba Telecom etc.

In 2006, adopted the technology of our electronic and thermal control experience, we started and moved to the R&D, manufacture, sales and service of LED lighting, and very quickly, we became one of the leading and most professional LED lighting companies in China.

Technology and quality are always playing key roles in Razorlux philosophy, we are holding the “Xi’an LED Lighting Engineering Laboratory” which is authorized and supported by China National Development and Reform Commission, and we are also holding the “Shaanxi LED Lighting Technology and Research Center” which is authorized and supported by China National Science and Technology Ministry. We have more than 10 professors and doctors in our company R&D dep. a

nd more than 30% of our employees have bachelor or higher degrees and fully trained.

Till 2018, we have 125 patents and more than 80 patents are pending, the patents include the LED chips packaging, power supply controlling and design of lamp housing. We worked with ISO-9001 quality control system since 2001, the products are UL,TUV, CE, SAA, C-tick and RoHS certificated.
